G switch


Image 1
  • Image 1
Price:
No longer available
SKU:
GS21
Shipping Weight:
0.10 LBS

Product Description

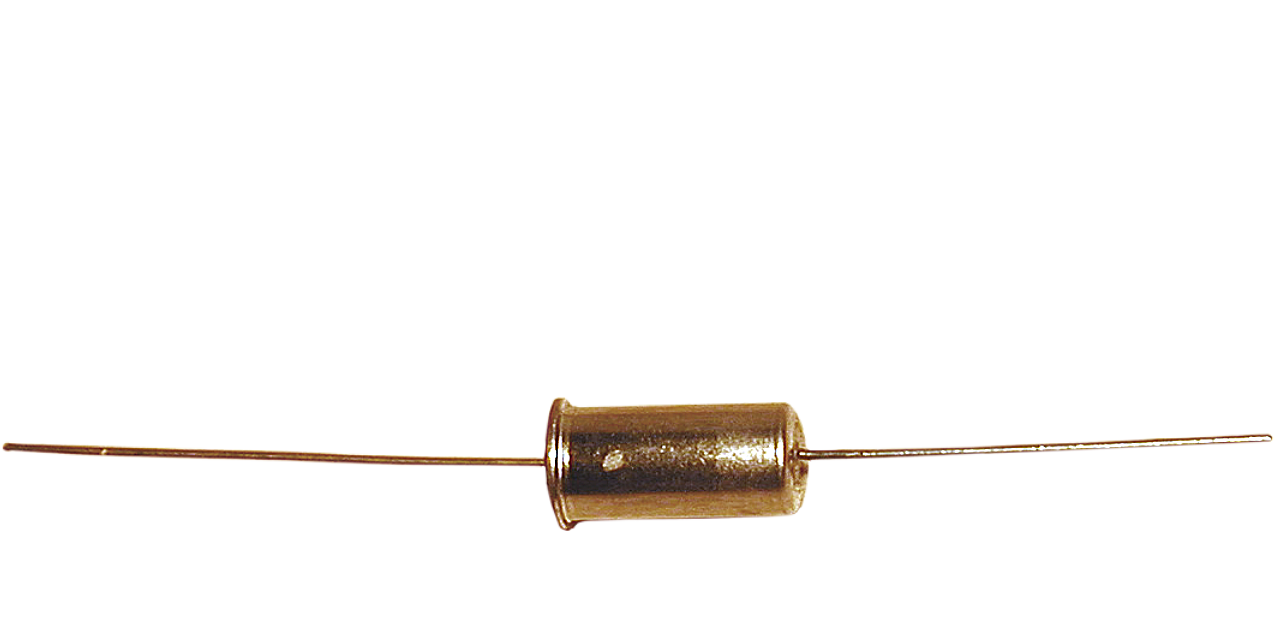

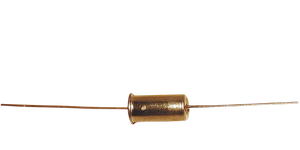

"G" switch for triggering miniTimer3T or the microTimer2. Activates with 2.1G acceleration, normally open momentary contacts. Can be soldered to pads provided on miniTimer board, see miniTimer manual for picture.


Note:  For use with the UT2A and MT3T only.

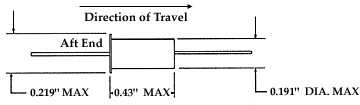

Specifications

dimensions:
0.43” x 0.19”
weight:
< 2.0 grams
package:
Hermetically sealed TO-18 axial lead
direction:
linear
activation level:
2.1G +/- 10%
contacts:
normally open
contact rating:
250mA at 24 VDC < 10 Ohms
insulating resist.:
30 MOhm minimum
operating temp.:
-65F to +185F
